Thermal Imaging Camera - FLIR Systems - Facility Management Product Release

Thermal Imaging Camera: FLIR Systems

FLIR Systems
website | Company information

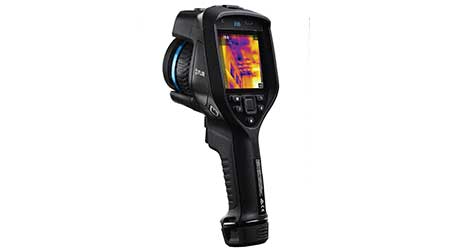

The Exx-Series advanced thermal imaging cameras for electrical, mechanical, and building applications feature intelligent interchangeable lenses, laser-assisted autofocus modes and area measurement functionality, improvements to FLIR’s MSX imaging technology, and a larger, more vibrant 4-inch touchscreen. The Wi-Fi-enabled FLIR E75, E85, and E95 help professionals identify hot spots or building deficiencies before potential problems become expensive repairs.   The compact intelligent, interchangeable lenses, that the camera automatically recognizes and calibrates, eliminate the need for manual calibration. The Exx-Series also features laser distance measurement that assures precise autofocus to improve temperature measurement accuracy, and specifically for the FLIR E85 and E95 models, provides the data for on-screen area measurement in square feet or meters. In addition, the FLIR E85 and E95 models offer increased thermal detector resolutions with up to 464×348 (161,472 pixels), and measure temperatures up to 1,500 degrees Celsius.

In conjunction with FLIR Tools, the FLIR E75, E85, and E95 offer UltraMax, FLIR’s embedded, super-resolution process that improves effective resolution by four times – up to 645,888 pixels – and thermal sensitivity by up to 50 percent. All models also feature significant improvement to FLIR’s MSX technology, which now utilizes a 5-megapixel visual camera for improved image clarity and readability. These improvements, combined with a display that is 33 percent brighter and 30 percent larger than previous Exx models, yield more vibrant and detailed thermal imagery.

The Exx-Series cameras also feature a rugged, water-resistant design, and scratch-resistant Dragontrail cover glass over an optically-bonded, projected capacitive (PCAP) touchscreen. A simplified user interface delivers faster, more intuitive operation, and coupled with enhanced Wi-Fi, Bluetooth and Meterlink connectivity, archiving and report generation has never been easier.


Content Category: Maintenance & Operations



posted: 7/10/2017
